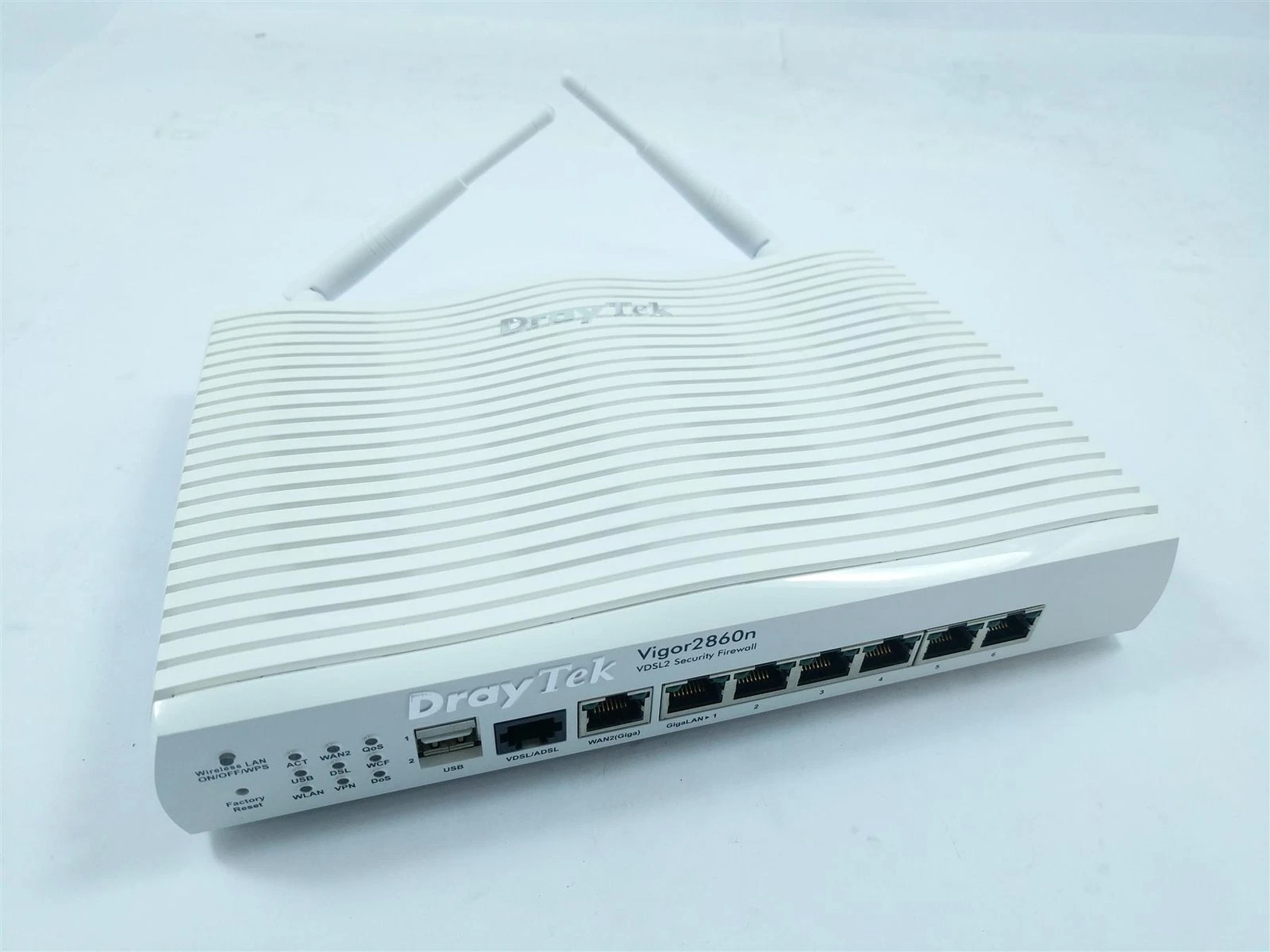

DrayTek Vigor2860n

Vigor 2860 ADSL/VDSL Series – Technical Specification (UK Hardware Spec.)

• Physical Interfaces:
  • LAN Ports (Switch)
    • 6 X Gigabit Ethernet (1000Mb/s) Ports
  • WAN Ports:
    • WAN1 : ADSL/VDSL, RJ11
    • WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet for load balance and WAN failover
    • WAN3 : USB 2.0 Port for 3G/4G Modem or Printer
    • WAN4 : USB 2.0 Port for 3G/4G Modem or Printer
  • Phone Ports : 2 x BT Type sockets. FXS type (V2860Vac only)
  • Line Port : For POTS/PSTN voice line connection (V2860Vac only)
• Performance:
  • Firewall: Up to 300Mb/s max
  • IPSec VPN: Up to 50Mb/s max
• ADSL Compatibility:
  • ANSI T1.413 Issue2
  • ITU-T G.992.1 G.dmt (ADSL)
  • ITU-T G.992.2 G.lite
  • ITU-T G.992.3 ADSL2
  • ITU-T G.992.5 ADSL2+
  • Annex L (READSL)
  • Annex A
  • Annex M
  • ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
  • DSL Forum : TR-048/67 & TR-100
• VDSL Compatibility:
  • BT Infinity Option 1 & Option 2 Compatible
  • BT SIN 498 MCT Approved
  • Support for G.INP & Vectoring
  • ITU-T VDSL2 G.993.2
  • ITU-T G.993.1, G.997.1
  • Band Plan: G.998, G.997
  • Annex A, Annex B, Annex C
  • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
  • OLR, UPBO, DPBO Supported
  • US0 Supported
  • Loop Diagnostic Mode
  • DSL Forum WT-114
• Load Balance/Failover Features:
  • Outbound Policy-Based Load-Balance to direct traffic via:
    • NAT or Routing
    • WAN Interface
    • LAN Interface
    • Specific LAN Gateway
    • VPN Tunnel
  • IP-Based or Session-Based Load Balance modes NEW!
  • WAN Connection Fail-over
  • BoD (Bandwidth on Demand)
  • WAN1 PPPoE/PPPoA Fallback account, used if the primary details are unable to establish a working connection NEW!
  • Configurable Load-Balance pool, specify WAN interfaces to load balance
  • WAN Budget
• Vigor 2860 ATM Protocols (DSL):
  • RFC-2684/RFC-1483 Multiple Protocol over AAL5
  • RFC-2516 PPP over Ethernet
  • RFC-2364 PPP over AAL5
  • PPPoE pass through LAN/WLAN
  • PPPoE/PPPoA Relay
  • Transparent bridge for MPoA
  • Multiple PVC support for Triple Play Applications (up to 8 simultaneous)
  • Support for RFC4638 for MTU up to 1500
• Wireless LAN Features (‘n’ ‘n-plus’ and ‘ac’ Models Only):
  • 802.11n Compatible with backward support for 802.11b/g
  • 802.11a ( Vigor 2860n-plus & 2860ac only)
  • 802.11ac (Vigor 2860ac only)
  • Simultaneous Dual Band (2.4Ghz/5Ghz) (Vigor 2860n-plus & 2860ac only)
  • Multiple SSID : Create up to 4 virtual wireless LANs (independent or joined)
  • Packet Aggregation and Channel Bonding
  • Optional Higher Gain or directional aerials available – Click Here.
  • Active Client list in Web Interface
  • Wireless LAN Isolation (from VLAN groups and wired Ethernet interfaces)
  • 64/128-bit WEP Encryption
  • WPA/WPA2 Encryption
  • Switchable Hidden SSID
  • Restricted access list for clients (by MAC address)
  • Time Scheduling (WLAN radio can be disabled at certain times of day)
  • Time Scheduling for individual SSIDs NEW!
  • Access Point Discovery
  • WDS (Wireless Distribution system) for WLAN Bridging and Repeating
  • 802.1x Radius Authentication
  • Wireless VLAN
  • Wireless Rate-Control
  • Automatic Power Management
  • 802.11e WMM (Wi-Fi Multimedia)
  • Station Control, limit wireless client access time per day
  • Airtime Fairness NEW!
  • Band Steering NEW!
  • Wireless WAN mode for WAN2, switchable with Ethernet (Wireless models only) NEW!
• VoIP Features (Vigor 2860Vac only):
  • Protocols: SIP, RTP / RTCP
  • 12 SIP Registrar Accounts (for up to 12 VoIP providers)
  • Line port for PSTN Passthrough (integrates POTS line)
  • Auto-fallback to PSTN under power/Internet failure
  • G.168 Line Echo-cancellation
  • Automatic Gain Control
  • Jitter Buffer ( 125ms )
  • Voice Codecs:
    • G.711 A / Law
    • G.723.1
    • G.726
    • G.729 A / B
    • VAD / CNG
  • Tone Generation: DTMF , Dial , Busy , Ring Back , Call Progress
  • DTMF Transmission: In Band / Out Band ( RFC-2833 ) / SIP info
  • FAX / Modem Support G.711 Pass-through
  • T.38 for FAX
  • Supplemental Services:
    • Caller ID
    • Call Hold / Retrieve
    • Call Waiting
    • Call Waiting with Caller ID
    • Call Transfer
    • Call Forwarding ( Always , On Busy and On No Answer )
    • DND (Do not Disturb)
    • Call Barring ( Incoming / Outgoing )
    • MWI ( Message Waiting Indicator ) ( RFC-3842 )
    • Hotline (Dial preset number when handset lifted)
• WAN Protocols (Ethernet):
  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • BPA
• Firewall & Security Features:
  • CSM (Content Security Management):
    • URL Keyword Filtering – Whitelist or Blacklist specific sites or keywords in URLs
    • Block Web sites by category (e.g. Adult, Gambling etc. Subject to subscription)
    • Prevent accessing of web sites by using their direct IP address (thus URLs only)
    • Blocking automatic download of Java applets and ActiveX controls
    • Blocking of web site cookies
    • Block http downloads of file types :
      • Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
      • Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
      • Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
    • Time Schedules for enabling/disabling the restrictions
    • Block popular P2P (Peer-to-Peer) file sharing programs
    • Block Instant Messaging programs (e.g. IRC, Skype/Yahoo Messenger etc.)
  • DNS Filter: Use DNS to enforce categorisation
  • Web Portal
  • Multi-NAT (32 WAN IPs per WAN1 & WAN2)
  • DMZ Host
  • DMZ Port (via LAN port P1, switchable)
  • 40 Port Redirection rules
  • 40 Open Port rules (10 port ranges per rule)
  • Policy-Based Firewall
  • MAC Address Filter
  • SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
  • DoS / DDoS Protection
  • IP Address Anti-spoofing
  • E-Mail Alert and Logging via Syslog
  • Bind IP to MAC Address
  • User Management:
    • Up to 200 Profiles
    • Supports external authentication via LDAP or RADIUS
    • Per User Bandwidth and Time Quota
    • Schedule Control to delete or disable account automatically
• Bandwidth Management:
  • Quality of Service (QoS – For devices in the NAT subnet according to source or destination IP)
    • Guaranteed Bandwidth for VoIP
    • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
    • Layer 2&3 (802.1p & TOS/DCSP)
    • DiffServ Code Point Classifying
    • 4-level Priority for each Direction (Inbound / Outbound)
    • Bandwidth Borrowed
    • App QoS: Classify traffic by Application NEW!
  • Temporary (5 minute) Quick Blocking of any LAN Client
  • Bandwidth Limit (Shared or individual limit)
  • Smart Bandwidth Limitation (Triggered by Traffic / Session)
  • Session Limit
• Network/Router Management:
  • Web-Based User Interface (HTTP / HTTPS)
  • CLI ( Command Line Interface ) / Telnet / SSH
  • Web Console: Access CLI through Web Interface
  • Administration Access Control
  • Brute Force Protection NEW!
  • Configuration Backup / Restore
  • Configuration Import from Vigor 2820, Vigor 2830 & Vigor 2850
  • Built-in Diagnostic Function
  • Firmware Upgrade via Web Interface, TFTP, FTP
  • Logging via Syslog
  • Supports SmartMonitor (up to 50 IPs monitored)
  • SNMP v3 Management with MIB-II
  • TR-069
  • TR-104
  • Access Point Management: Centrally Manage up to 20 DrayTek VigorAPs
  • Switch Management: Centrallly Manage up to 10 DrayTek VigorSwitches NEW!
• VPN Facilities:
  • Up to 32 Concurrent VPN Tunnels (incoming or outgoing)
  • Tunnelling Protocols:
    • PPTP
    • IPSec
    • L2TP
    • L2TP over IPSec
    • DrayTek SSL
    • GRE NEW!
  • IPSec Main and Agressive modes
  • IKE Phase 1 DiffieHelman Groups 1,2,5 & 14
  • IKE Phase 2 DiffieHelman Groups 1,2,5 & 14 (will match phase 1 selection)
  • Encryption : MPPE, DES / 3DES (168bits) and Hardware-Based AES (128/192/256bits)
  • Authentication : Hardware-Based MD5, SHA-1 and SHA-256 (f/w 3.8.3 and later)
  • IKE Authentication : Pre-shared Key or X.509 Digital Signature
  • SSL VPN for teleworkers – Up to 16 simultaneous users. Proxy or tunnel
  • LAN-to-LAN & Teleworker-to-LAN connectivity
  • DHCP over IPSec
  • NAT-Traversal ( NAT-T )
  • Dead Peer Detection (DPD)
  • VPN Pass-Through
  • MOTP (Mobile One Time Password) for two factor authentication (2FA)
  • Virtual IP Mapping, map a remote IP subnet/range to another range to resolve IP subnet/range conflicts
  • Port forwarding (Port Redirection, Open Ports) to remote clients connected via an IPsec LAN to LAN VPN NEW!
• Network Features:
  • Port-Based VLAN (Inclusive/Exclusive Groups)
  • 802.1q VLAN Tagging
  • Port Mirroring
  • 802.1X Port Authentication
  • Multi Subnet DHCP Servers with DHCP Relay
  • Custom DHCP Option support
  • Dynamic DNS
  • DNSSEC support NEW!
  • DNS Transparent Proxy
  • DNS Caching
  • LAN DNS (supports CNAME)
  • NTP Client (Synchronise Router Time)
  • Call Scheduling (Enable/Trigger Internet Access by Time)
  • RADIUS Client
  • LDAP Client
  • TACACS+ Client
  • High Availability NEW!
  • Internal RADIUS Server NEW!
  • Microsoft™ UPnP Support
  • Maximum MTU 1534
  • Routing Protocols:
    • Static Routing (30 routes)
    • RIP V2
    • RIPng for IPv6 NEW!
