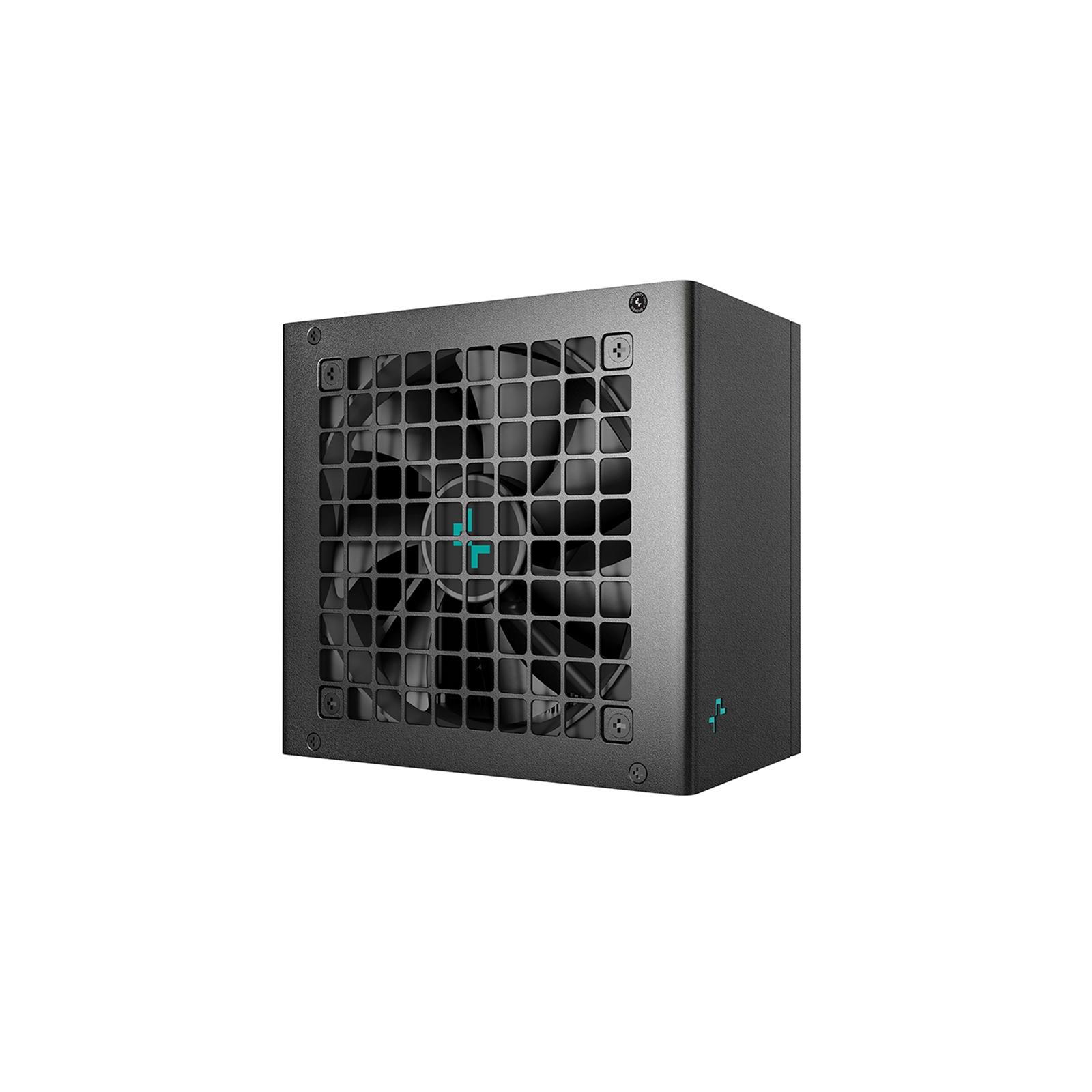

DeepCool PN750D 750W PSU, ATX 3.1, 120mm Silent High Performance Fan, 80 PLUS Gold, Non Modular, UK Plug, Flat Black Cables, Japanese Bulk Capacitors

PN750D NATIVE DIRECT ATX3.1
The DeepCool PN750D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2×6, 2 EPS, and 3 PCIe connectors, the PN750D provides stable power for a wide range of modern high-power components.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750D can keep the hold-up time to = 16 ms under a high load of 80%.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN750D provides up to 450W for modern GPUs.

DYNAMIC HYDRO BEARING FAN
The PN750D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

PEACE OF MIND
The PN750D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection

EXCELLENT COVERAGE
The PN750D is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.

Specifications

Type
ATX12V V3.1

Product Dimensions
150 x 140 x 86mm (W x L x H)

Efficiency certification
80Plus Gold

Fan Size
120mm

Fan Bearing
HYB (Hydro Bearing)

Topology
Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors
Chinese Electrolytic Capacitors

Power Good Signal
100-150ms

Hold Up Time
=16ms(80% Load)

Efficiency
=90% Under Typical Load(50% Loading)

Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature
0 – 40?

Regulatory
CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC

Erp Regulation
ErP 2014

Environment Protection
WEEE/?? RoHS/Triman/P65

MTBF
100,000 Hours
