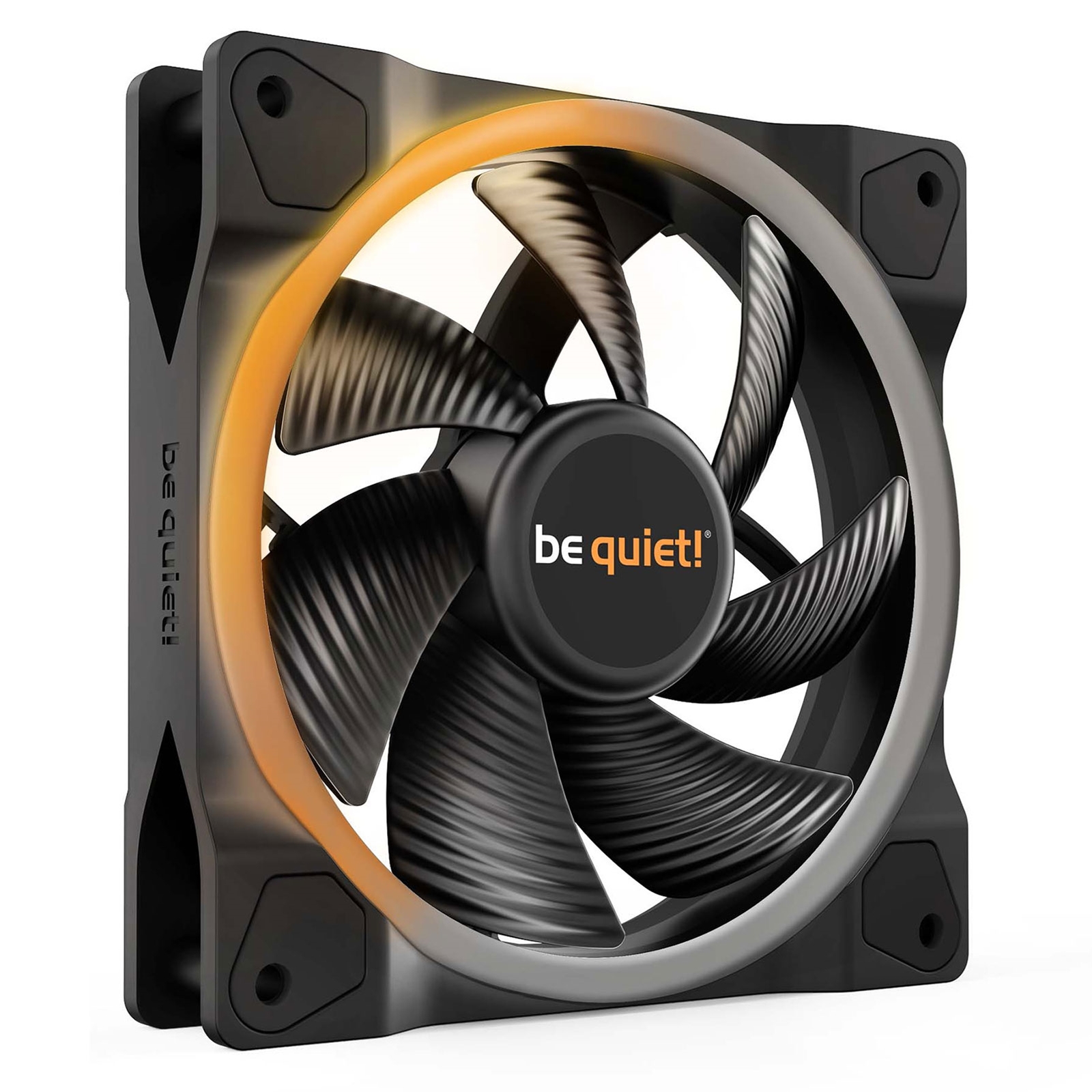

be quiet! Light Wings PWM Addressable RGB Fan, 120mm, 1700RPM, 4-Pin PWM Fan & 3-Pin ARGB Connectors, Black Frame, Black Blades, ARGB Lighting on Front & Rear


6 in stock

  • Product Type: Case Fan
  • Fan Size: 120mm
  • Max Fan Speed: 1700RPM
  • Fan Shroud Colour: Black
  • LED Colour: Addressable RGB
  • Connections: 4-Pin Fan & 3-Pin ARGB

£22.25 inc VAT

6 in stock

EAN: 4260052188767

Stock Information

Scroll Location

Light Wings 120mm PWM offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
– ARGB lighting on front and rear
– Multiple colors and modes for an individual look thanks to 18 LEDs
– 7 silence-optimized fan blades for high airflow and low noise-generating turbulences
– Very quiet operation with max. 20.6dB(A)
– Long life rifle-bearing gives an operating lifetime of 60,000 hours
– 3-year manufacturer’s warranty
If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 120mm PWM is your fan of choice.

Lots of illumination possibilities
Light Wings 120mm PWM offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 18 ARGB LEDs give you many opportunities to individualize your PC build.

Fan blades optimized for high airflow
With optimization for maximum airflow, Light Wings 120mm PWM is the right choice for any case configuration that demands high cooling performance. Its seven airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Light Wings 120mm PWM provides the performance that is needed, even in demanding configurations.

Acclaimed be quiet! low noise level
A highly optimized impeller achieves the silent operation be quiet! is famous for. With a noise level of 20.6dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and powerful operation. All features combine to make Light Wings 120mm PWM the fan of choice for silent show cases and gaming systems alike.

Adjusts the fan speed and associated noise level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.

General Data
Model: Light Wings 120mm PWM
Dimensions (mm): 120
Color option: Black
Lighting: ARGB LED
Fan speed @ 100% PWM / 12V (rpm): 1700
Noise level @ 100% PWM / 12V (dB(A)): 20.6
Air Flow @ 100% PWM / 12V (CFM / m3/h): 41.51 / 70.53
Air Pressure @ 100% PWM / 12V (mm H2O): 1.66

Mechanical Specifications
Dimensions (L x W x H), (mm): 120 x 120 x 25
Weight incl. fixed cables (g): 200
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: –
Screw fixing: Yes

Cables / Connectors
Daisy chain for lighting signal: Yes
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: –

Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 41.51 / 70.53
Air Pressure @ 100% PWM / 12V (mm H2O): 1.66
Noise level @ 100% PWM / 12V (dB(A)): 20.6
Lifespan (h / 25°C): 60,000

Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 – 13.2
Current consumption (A): 0.07
Safety current (A): 0.38
Input power (W): 4.56
Rated Current LED (A): 0.6

3-pin to 4-pin 12V-connector: –
12V to 7V adapter: –
12V to 5V adapter: –
Screws: 4
Push pins: –
hard plastic washer: –
Others: –

Safety Certification
Approvals: CE / RoHs / RU / WEEE

Environmental Directives
RoHs: –
Triman: –

Logistics Data
Article number: BL072
Dimensions, package (L x W x H), (mm): 153 x 133 x 29.5
Gross weight, package (kg): 0.267
