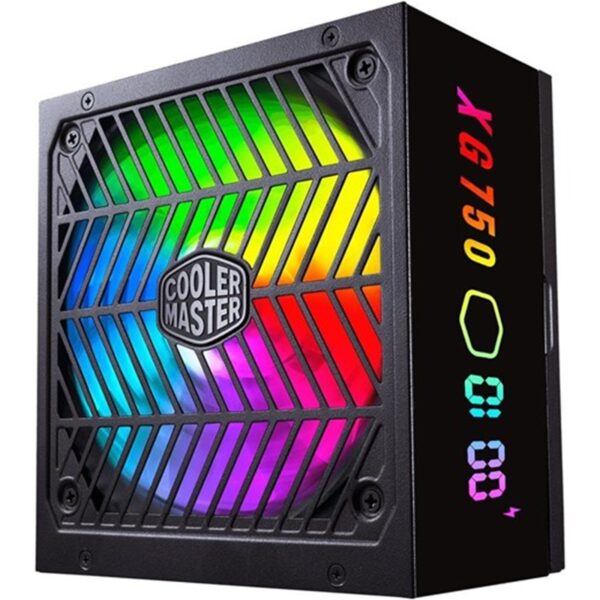

Cooler Master XG750 Plus Platinum PSU – 80 Plus Platinum 750W, Fully Modular, Real-Time Display, 100% Japanese Capacitors, 135mm FDB ARGB Fan

Original is Everything
Cooler Master keeps searching for uniqueness, creativity, and more. XG Plus Platinum is the first Cooler Master in-house designed power supply, providing next-level efficiency, rigid design, and sturdy performance to fulfill all your daily computing and gaming needs.

Silence is Platinum
The XG Plus Platinum is Cooler Master’s first in-house designed platform, created to provide rated efficiency and high-end performance. It offers full-modular cabling with in-line capacitors, an ARGB 135mm silent fan, and a 10 year warranty. The built-in Information Display Panel compatible with MasterPlus+ software, can monitor real time performance and manage ARGB effects hassle-free.

Powered by Cooler Master
The XG Plus Platinum marks the culmination of many years of effort and the beginning of a new era for Cooler Master power supply units. This product line debuts the first generation of power supply platform created by Cooler Master in-house. This platform allows Cooler Master to offer an entirely new class of high efficiency products. The use of 100% Japanese capacitors allows this power supply unit to deliver top-shelf performance with reduced ripple noise.

Silence is Platinum
Some power supply units offer great cooling performance. And some offer quiet operation. The XG Plus Platinum offers both. The in-house designed was created so that we could deliver a high quality PSU that could power gaming builds at top of the line performance levels while remaining relatively cool.

ARGB Fans with Digital Side Panel
The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.

Crafted For Excellence
The XG Plus Platinum is created and designed for performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The full-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency while creating minimal noise pollution.

Flat Cables
The XG Plus Platinum is using flat cabling to reduce clutter, which in turn increases both airflow and aesthetic quality.

Specifications

ATX Version
Intel ATX 12V Ver. 2.53

PFC
Active PFC

Input Voltage
100-240V

Input Current
10-5A

Input Frequency
50-60Hz

Dimensions
160 x 150 x 86 mm

Fan Size
135mm

Fan Speed
1800 RPM

Noise Level @ 100%
= 25 dBA

Efficiency
= 92% @ Typical Load

80 PLUS Rating
80 PLUS Platinum

ErP 2014 Lot 3
Yes

Operating Temperature
0-50°C

Power Good Signal
100 – 150 ms

Hold Up Time
= 16ms

MTBF
>100,000 Hours

Protections
OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection

Regulatory
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA

ATX 24 Pin Connectors
1

EPS 4+4 Pin Connectors
1

EPS 8 Pin Connector
1

SATA Connectors
12

Peripheral 4 Pin Connectors
4

PCI-e 6+2 Pin Connectors
4

USB Protocol 10P
1

Series
XG Series

80 Plus
Platinum

Modular
Full Modular

Wattage
750W
