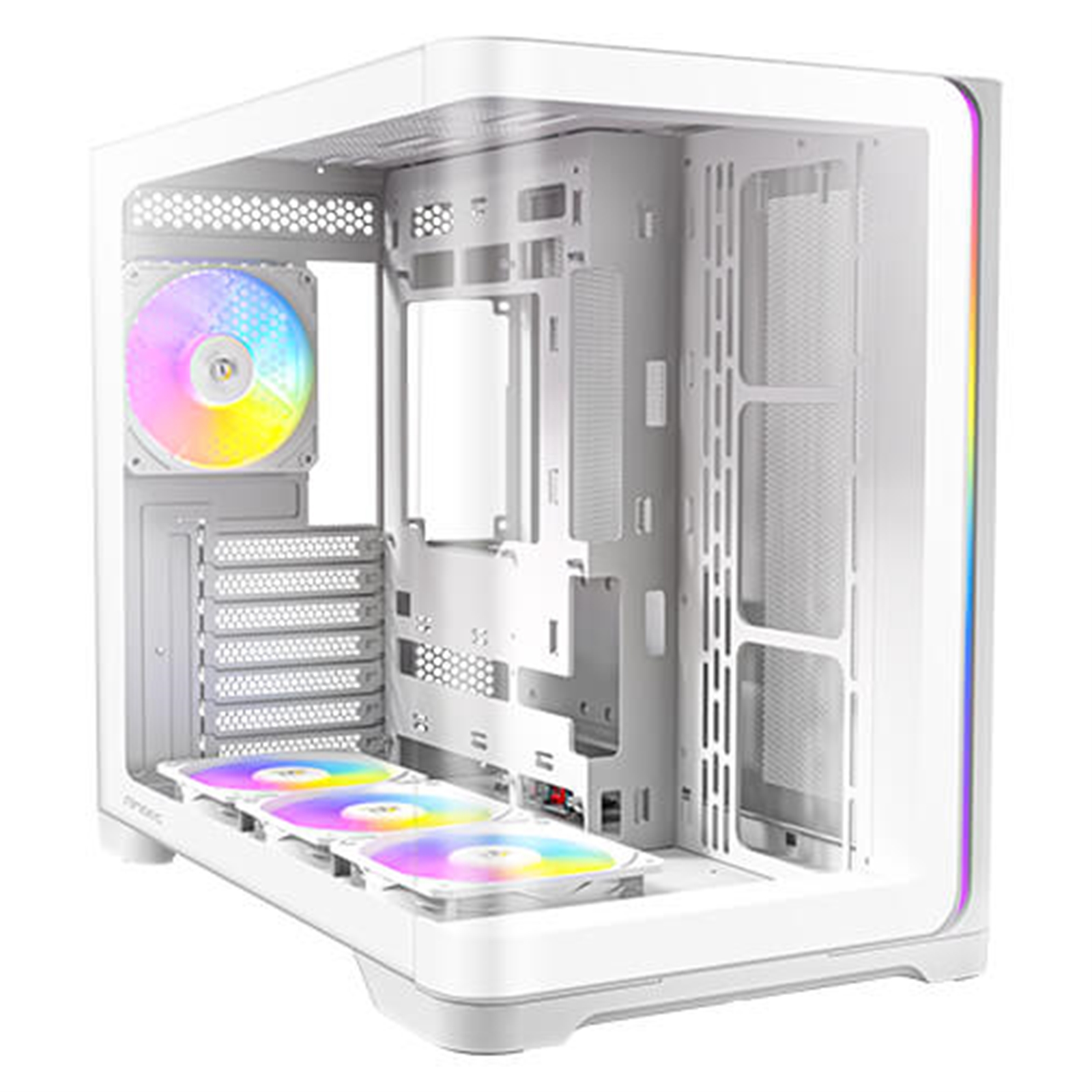

ANTEC Constellation C5 Curve White ARGB Case, Curved Glass Panels, Dual Chamber, Support back-connect motherboards, 4 x ARGB PWM fans with built-in fan controller, ATX, Micro-ATX, ITX

C5 CURVE ARGB

Curved Glass Panels
Sleek curved tempered glass panels provide a seamless, panoramic view that elegantly showcases your build.

Dual chamber
Dual chamber design for independent cooling, with the right chamber featuring top-mounted power supply and 95mm cable management space.

Support back-connect motherboards
C5 Curve ARGB supports next-gen back-connect motherboards. Plug in the cables from the back to give the front a cleaner look and a smoother airflow channel.

Vertical Cooling
Vertical cooling scheme supporting up to 10 fans accelerates heat dissipation with bottom-to-top vertical airflow.

Pre-installed 4 x ARGB PWM fans with built-in fan controller
3 reverse fans on bottom provide massive air intake.

Ample space for water cooling
Simultaneous support for top and bottom 360mm radiators and side 280mm radiator.

Magnetic Dust Filters
Top and bottom magnetic dust filters for dust-free air intake.

I/O Panel
Equipped with one Type-C 3.2 Gen 2 port for high-speed transmission.

Storage Compatibility
Removable hard drive cage provides space for 1 x 3.5″ HDD and 2 x 2.5″ SSD. The case bottom can additionally accommodate a 3.5″ HDD after removing the frontmost bottom fan, or a 2.5″ SSD after removing the lowest side fan.

Extensive Interior
Motherboard support ATX, Micro-ATX, ITX
CPU cooler max height = 160mm
GPU max length = 410mm
Power Supply max length (Include cable) = 240mm

Specifications

Main Spec

Dimensions
465 x 285 x 400mm(DWH)

Form Factor
Mid Tower

Materials
Steel + Plastic + Glass

Mainboard Support
ATX, Micro-ATX, ITX

Front Access & Controls
Power, LED Control Button, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1

Side Panel
4mm Tempered Glass

Drive Bays

Expansion Slots
7

3.5″
1

2.5″
2

Fan Support

Top
3 x 120 / 2 x 140mm

Right Hand Side
3 x 120 / 2 x 140mm

Bottom
3 x 120mm

Rear
120mm

Included Fan(s)
3 x 120mm P12 PWM ARGB reverse fans at the bottom + 1 x 120mm P12 PWM ARGB fan at the rear

Radiator Support

Top
120 / 140 / 240 / 280 / 360mm

Right Hand Side
120 / 140 / 240 / 280mm

Bottom
120 / 240 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 410mm

Max CPU Cooler Height
= 160mm

Max PSU Length
= 240mm(Include cable)

Miscellaneous

Dust Filter
Top / Bottom

Net Weight
7.3 Kg

Gross Weight
8.8 Kg

Warranty
2 Years
