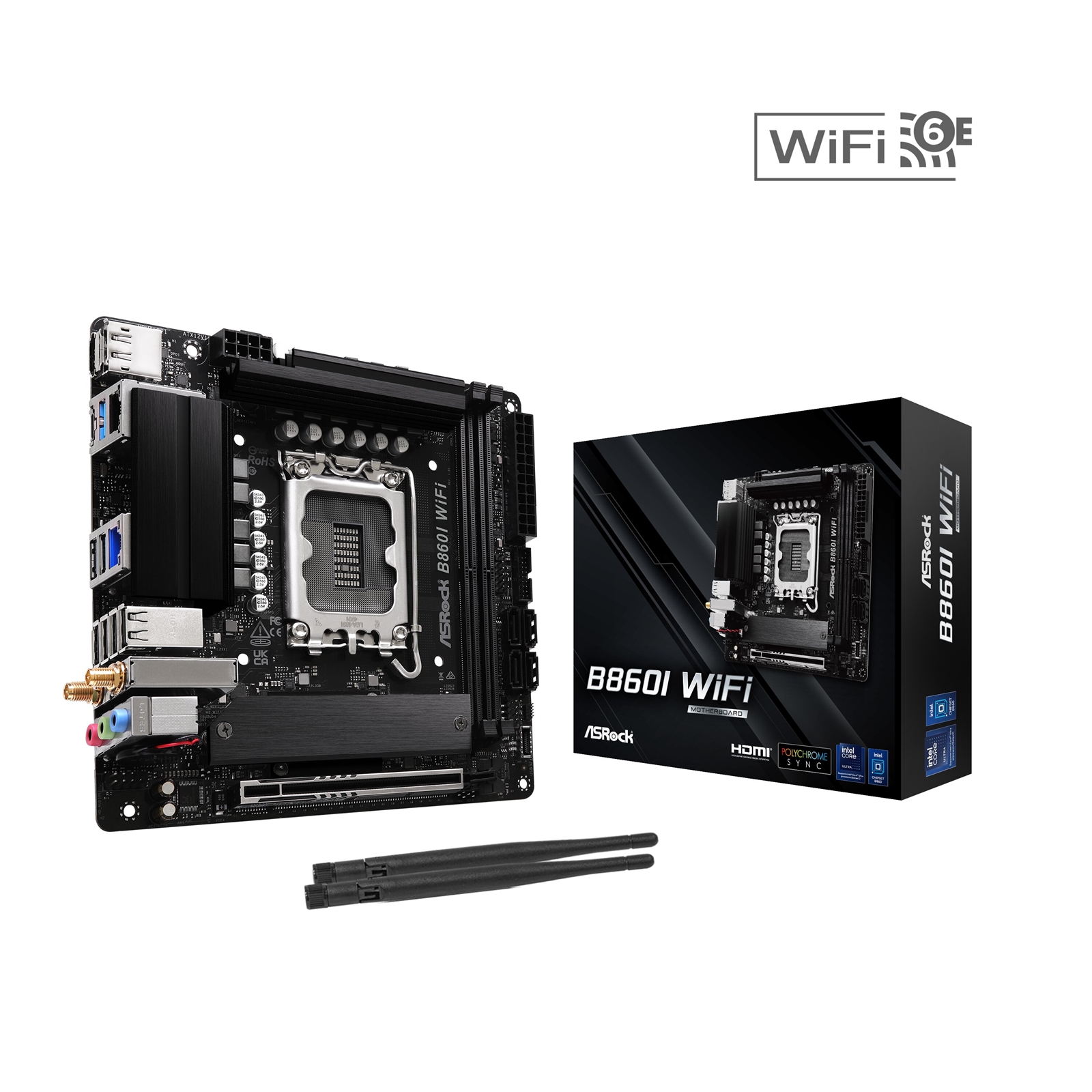

ASRock B860I WiFi Intel 1851 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 2x M.2 Socket, 2.5GbE + 1GbE LAN, Wi-Fi 6E, 1x DisplayPort / 1x HDMI Port

B860I WiFi

Unique Feature
Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 8+1+1+1+1 Power Phase, SPS for VCore+GT+VCCSA
Ultrafast Connectivity
– 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
– ASRock Auto Driver Installer

CPU
– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® Thermal Velocity Boost (TVB)
– Supports Intel® Adaptive Boost Technology (ABT)
– Integrated NPU for dedicated AI acceleration

Chipset
– Intel® B860

Memory
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)*
– Supports Clocked Unbuffered DIMM (CUDIMM)
– Max. capacity of system memory: 128GB
– Supports Intel® Extreme Memory Profile (XMP) 3.0x

BIOS
– 256Mb AMI UEFI Legal BIOS with GUI support

Graphics
– Intel® Xe LPG Graphics Architecture
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio

LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control

1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Wireless LAN
– 802.11axe Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.3
– Supports MU-MIMO

Slots
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
CPU:
– 1 x USB 3.2 Gen2x2 Type-C (Rear)
Chipset:
– 1 x USB 3.2 Gen2 Type-C (Front)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)

Connector
– 1 x Addressable LED Header*
– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

Rear Panel I/O
– 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
– 1 x USB 3.2 Gen2 Type-A Port
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 2 x RJ-45 LAN Ports
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

Accessories
– 1 x I/O Shield
– 2 x SATA Data Cables
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas
– 2 x Screws for M.2 Sockets

Form Factor
– Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

OS
– Microsoft Windows® 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
