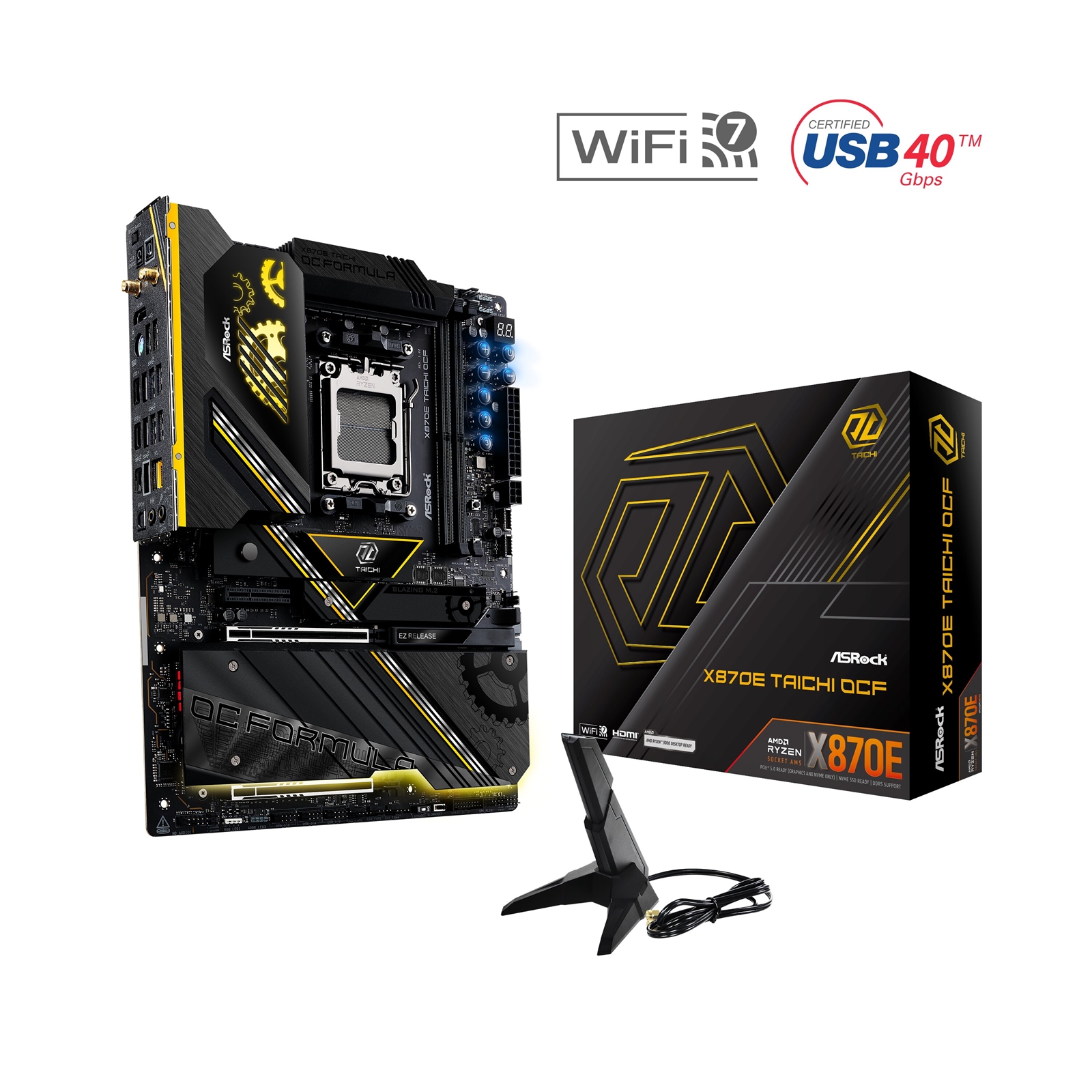

ASRock X870E TAICHI OCF AMD AM5 Socket Motherboard, ATX, 2x DDR5 Slots, 6x M.2 Socket, Fitted I/O Shield, 5GbE LAN, Wi-Fi 7, 1x HDMI Port

X870E TAICHI OCF

Unique Feature
Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
– USB4 Type-C Ports (40 Gb/s)
– 6 x M.2 Sockets
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 22+2+1 Power Phase, 110A SPS for Vcore+SOC with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming
– 5G LAN, 802.11be Wi-Fi 7 Module
Professional Overclocking
– ASRock Hyper BCLK Engine
– Physical OC Buttons
– V-Probe™
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer

CPU
– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
– Supports ASRock Hyper BCLK Engine

Chipset
– AMD X870E

Memory
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– AMD Ryzen™ 9000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 8400+(OC)*
– AMD Ryzen™ 8000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 10400+(OC)*
– AMD Ryzen™ 7000 Series Processors supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
– Max. capacity of system memory: 128GB*
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
– 2 x 512Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio
– 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
– WIMA Audio Capacitors (For Rear Outputs)
– ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
– Individual PCB Layers for R/L Audio Channel
– Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
– Nahimic Audio

LAN
– 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
– Realtek RTL8126

Wireless LAN
– 802.11be 2×2 Wi-Fi 7 Module
– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
– Supports 2.4GHz/5GHz/6GHz
* frequency band
– Supports 160MHz channel bandwidth with 6GHz
* frequency band
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.4
– Supports MU-MIMO

Slots
CPU:
– 2 x PCIe 5.0 x16 Slots (PCIE2 and PCIE3), support x16 or x8/x8 modes*
Chipset:
– 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode*
– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
– Supports AMD CrossFire™

Storage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Ultra M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 2 x SATA3 6.0 Gb/s Connectors

RAID
– Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
CPU:
– 2 x USB4 Type-C (Rear)
– 2 x USB 3.2 Gen2 Type-A (Rear (USB32_23))
Chipset:
– 2 x USB 3.2 Gen2x2 Type-C (Front)
– 5 x USB 3.2 Gen2 Type-A (Rear (USB32_1, USB32_456 and USB32_7))
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 2 x USB 3.2 Gen1 Type-A (Front)
– 8 x USB 2.0 (2 Rear, 6 Front)

Connector
– 2 x Thermistor Cable Headers
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)****
– 1 x Front Panel Audio Connector (15µ Gold Audio Connector)
– 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports)
– 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s)*****
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Retry Button
– 1 x Safe Boot Button
– V-Probe™: 6-set of onboard voltage measurement points laid
– Rapid OC Buttons: +/- buttons to adjust OC frequency
– 1 x Slow Mode Switch
– 1 x LN2 Mode Switch
– 1 x NickShih’s OC Profile 1 Button with LED
– 1 x NickShih’s OC Profile 2 Button with LED
– 1 x NickShih’s OC Profile 3 Button with LED

Rear Panel I/O
– 2 x Antenna Ports
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x Optical SPDIF Out Port
– 2 x USB4 Type-C Ports (40 Gb/s)*
– 7 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x Clear CMOS Button
– 1 x BIOS Flashback Button
– 1 x BIOS Selection Switch
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI
Software
– ASRock Formula Drive
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

Accessories
– 2 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5/6 GHz Antenna
– 1 x DRAM Cooling Fan
– 1 x ARGB Splitter Cable
– 2 x Thermistor Cables

Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 10 Layer PCB
– 2oz Copper PCB

OS
– Microsoft Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
