RGB White Gaming Build – Intel i5 13th Gen, 14 Cores 20 Threads, 3.50GHz (5.10GHz Boost), 16GB RAM, 2TB NVMe, RTX 5060Ti 8GB White Graphics, Windows 11 Home – Custom PC

RGB White Gaming Build – Intel i5 13th Gen, 14 Cores 20 Threads, 3.50GHz (5.10GHz Boost), 16GB RAM, 2TB NVMe, RTX 5060Ti 8GB White Graphics, Windows 11 Home – Custom PC

Processor
Intel Core i5 13600KF 14 Core Processor 20 Threads, 3.5GHz up to 5.1GHz Turbo Raptor Lake Socket LGA 1700 24MB Cache, 125W, Maximum Turbo Power 181W, Unlocked Overclockable

Processor Cores
14

Processor Threads
20

Core Clock Speed
3.50GHz

Core Boost Speed
5.10GHz

CPU Cooler
DeepCool LD 360 AIO Liquid CPU Cooler,White, Universal Socket, 360mm Radiator, PWM 2400RPM Cooling Fans, Addressable RGB LED Lighting, Fully Customizable Infinity Mirror Cap Design, Digital Display,

Memory
Patriot Venom 16GB (2 x 8GB) 5600MTs DDR5 DIMM System Memory Heatsink

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Patriot P300 (P300P2TBM28) 2TB NVMe SSD, M.2 Interface, PCIe Gen3, 2280, Read 2100MB/s, Write 1650MB/s

Format
NVMe

Max Read/Write Speeds
Up to 2100MB/s
Up to 1650MB/s

Hard Drive
N/A

Optical Drive
N/A

Graphics
GeForce RTX 5060 Ti AERO OC 8GB GDDR7 Graphics Card, 4608 CUDA Cores, 2647 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port
Core Clock
2647 MHz (Reference card :2572 MHz)
CUDA Cores
4608
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680×4320

Graphics Card I/O
3 x DisplayPort 1.4a
1 x HDMI 2.1

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software

Card Reader
N/A

Networking
Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Power Supply
Antec NE1000G M, White, PCIe 5.0 Ready, Fully Modular, 80PLUS Gold, Single Rail, 83A, 120mm FDB Fan, ATX3.0 PSU
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.0 12VHPWR
2 x 8(4+4)pin CPU
4 x 8(6+2) Pin PCI-E
12 x SATA
4 x Molex

Motherboard
Gigabyte B760M AORUS ELITE X AX Intel 1700 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x DisplayPorts / 2x HDMI Port

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Rear I/O
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Chassis

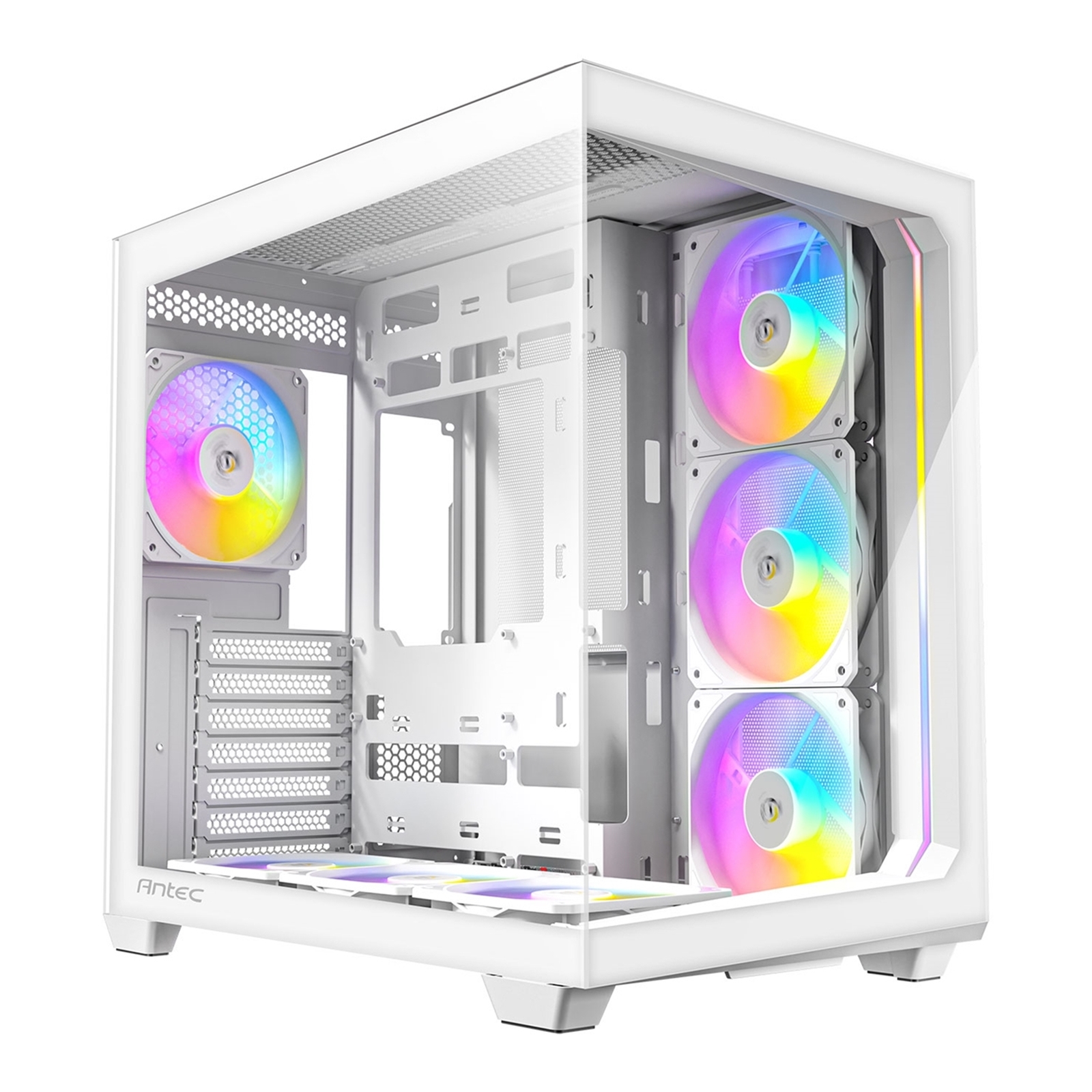

ANTEC Constellation C5 White ARGB Case, 270 Full-View Tempered Glass, Dual Chamber, Support Back-Connect Motherboards, 7 x ARGB PWM Fans With Built-In Fan Controller

Drive Bays
3.5 x 1
2.5 x 2

IO Ports
Power
LED Control Button
USB 3.0 x 2
Type-C 3.2 Gen 2 x 1
MIC x 1
HD-AUDIO x 1

Cooling
Top = 3 x 120 / 2 x 140mm
Side = 3 x 120 / 2 x 140mm
Bottom = 3 x 120mm
Rear = 120mm
Included Fan(s)
3 x 120mm PWM ARGB reverse fans at bottom + 3 x 120mm PWM ARGB reverse fans on right side + 1 x 120mm PWM ARGB fan in rear

Dimensions
469 x 285 x 400mm (DWH)

Package Weight
9.2 kg

Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
